Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function

100
MOQ
$100-185/sets
Price
Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 6 Months
Customized Support: OEM, Software Reengineering, ODM, OBM
Place Of Origin: Guangdong, China
Brand Name: XINHENG
Accuracy: Other
Model Number: XH8720
Type: Truck Scale, Livestock Scale
Display Type: LCD/LED
Material: Carbon Steel
Product Name: Industrial Floor Scale 3000kg
Capacity: 60kg, 100kg,150kg,200kg, 300kg, 600kg, 1000kg, 1500kg,3000kg
Function: Material Multi-function Weighing Scale And Printing Preservation
Unit: Kg/ Lb
Application: Industral Scale
Platform Size: Optional
Power Supply: 110-240AC/DC
Operating Temperature: 0°C To 40°C
Model: TCS Series Platform Scale,ACS Series Price Scale
Material: Stainless Steel,Carbon Steel
Platform Size: 400mm X 500mm, 500mm X 600mm, 600mm X 800mm, 800mm X 1000mm,100*100cm,120*120cm,150*150cm
Communication: RS232, RS485, USB, Ethernet,Bluetooth,wifi,3G,4G,5G,LoraLAN
Storage Temperature: -25°C To 55°C
Display Resolution: 1/3000, 1/6000, 1/15000, 1/30000
Certifications: CE, OIML, NTEP, ISO,CE,ROHS,FCC
Functions: Tare, Zero, Accumulation, Counting, Checkweighing, Hold
Accuracy: 0.1kg, 0.2kg, 0.5kg, 1kg, 2kg, 5kg
Display: LED/LCD
Units Of Measure: Kg, Lb, Oz, G
Power Source: Rechargeable Battery
Basic Infomation
Place of Origin: Hunan China
Brand Name: OEM
Certification: ISO,CE,ROHS,FCC,OIML
Model Number: OEM
Payment & Shipping Terms
Delivery Time: 5-8 business days
Payment Terms: T/T,Western Union
Supply Ability: 100 pieces per day
Product Description

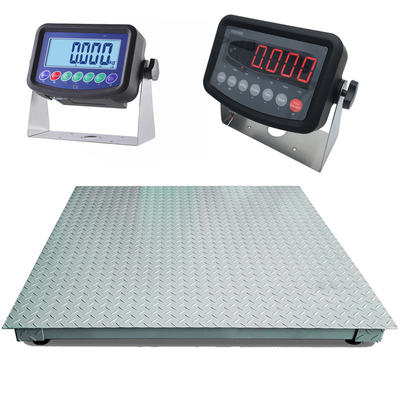

Thick Platform Plate Industrial Floor Scale 3000kg Weighing Electronic Platform Scale Digital XH8720


Contact us now to get the exact price according to your needs.

 Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 0Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 1

Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 2

Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 3Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 4

Main Features:

  • Internal Resolution 1,000,000
  • 6 digit display, 7 functional keys
  • Digit height: 30mm (LED), 40mm(LCD)
  • Good software technology to enhance the instrument’s vibration resistance ability
  • Auto screen protection and auto power off function
  • Counting and animals weighing function
  • HI-LO limit alarm function
  • Accumulation, percentage weighing
  • Peak value holding function
  • Optional: RS232 port, USB or bluetooth port

Technical Parameter:

Load Cells Up to 4 load cells of 350Ω
Excitation Voltage DC 5V
Full Scale Input Signal Range 1~10mV
Zero Point Input Signal Range 0~5mV
Unit kg, lb
Power Supply
External Power Supply AC100~240V
Battery 6V/4Ah


Scale Body Specifications:

Model NO. Capacity

Length

(mm)

Width

(mm)

Platform to Ground Height

(mm)

Product Weight

(kg)

XH8720-1010-1~3t 1~3t 1000 1000 110 65
XH8720-1010-5t 5t 1000 1000 110 65
XH8720-1012-1~3t 1~3t 1000 1200 110 80
XH8720-1012-5t 5t 1000 1200 110 80
XH8720-1212-1~3t 1~3t 1200 1200 110 100
XH8720-1212-5t 5t 1200 1200 110 100
XH8720-1215-1~3t 1~3t 1200 1500 110 125
XH8720-1215-5t 5t 1200 1500 110 125
XH8720-1515-1~3t 1~3t 1500 1500 110 150
XH8720-1515-5t 5t 1500 1500 110 150
Customized size is acceptable

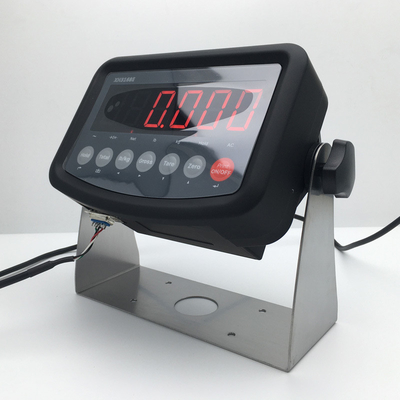

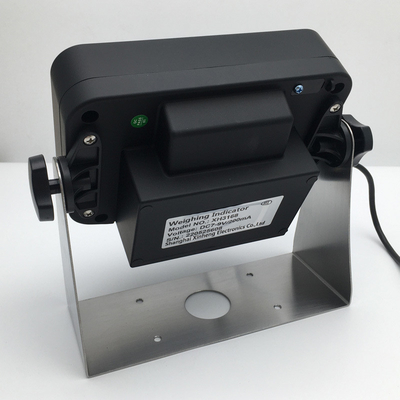

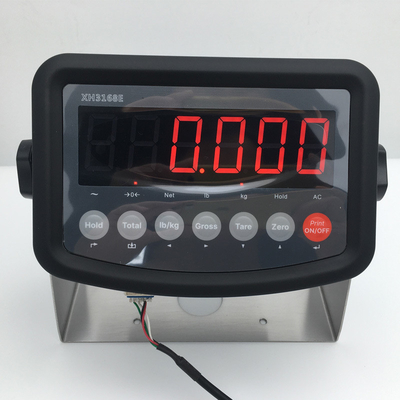

Big Digit Weight Indicator help reading weight easily.

Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 5

Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 6Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 7Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 8

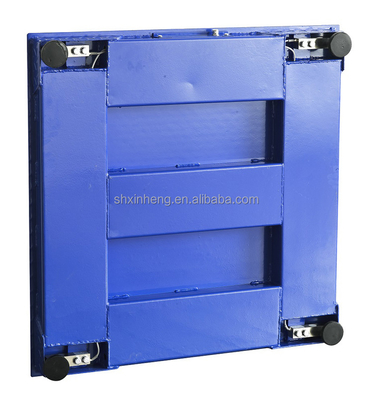

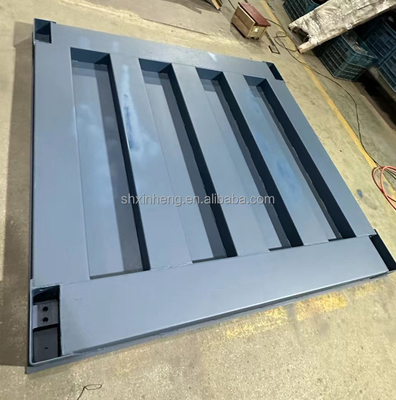

We only use 5mm and 6mm platform plate for regular size floor scales!

Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 9Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 10Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 11

Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 12

Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 13Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 14Thick Platform Plate Industrial Floor Scale XH8720 3000kg Digital Electronic Platform Scale with Material Multi-Function 15
