IP65 Protection Level 4-20mA Load Cell Signal Amplifier Module for Market Fixed Installation

5 pieces
MOQ
$32/pieces 5-9 pieces
Price
IP65 Protection Level 4-20mA Load Cell Signal Amplifier Module for Market Fixed Installation
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: Fixed Installation
Description: Alloy Steel Load Cell, 4-20mA Load Cell Amplifier
Type: Force Sensor
Use: PRESSURE SENSOR
Output: Analog SENSOR, Analog SENSOR
Usage: PRESSURE SENSOR
Material: Plastic Or Aluminum Alloy Amplifier
Name: 4-20mA Load Cell Amplifier
Output Signal: 0-5V, 0-10V, 4-20mA (Optional)
Working Temperature: -20~80 ℃
Precision: More Than 0.1%F.S
Working Temp.: -10--70 Degree
Load Cell Connection: 1- 4 Sensors
Protection Level: IP65
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: PY-V-SP
Payment & Shipping Terms
Product Description

4 To 20mA Load Cell Signal Amplifier Module China





Features:



  • Plastic housing, durable, cost-effective
  • Housing and wire joints are waterproof design, good sealing
  • High precision amplifier circuit, good stability
  • Anti-jamming performance
  • Wide sensitivity input range
  •  Power supply with reverse protection, surge protection, overcurrent protection
  • Sensor excitation voltage adjustable
  • Portable, small size, light weight, easy to install
  • Suitable for weighing, pull push force, torque, tension and other strain sensor

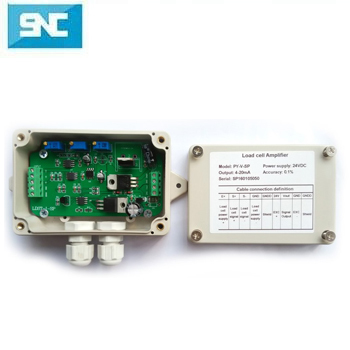

IP65 Protection Level 4-20mA Load Cell Signal Amplifier Module for Market Fixed Installation 0

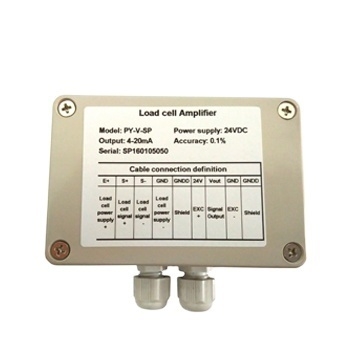

IP65 Protection Level 4-20mA Load Cell Signal Amplifier Module for Market Fixed Installation 1







Wiring details

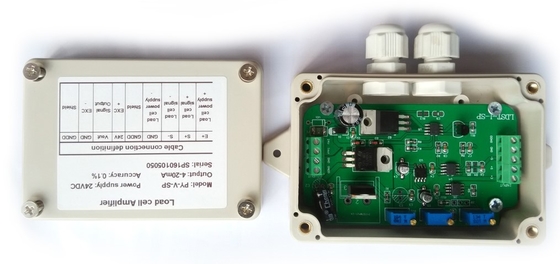

IP65 Protection Level 4-20mA Load Cell Signal Amplifier Module for Market Fixed Installation 2





Parameter





Input Signal  mV
 Sensitivity range Standard: 1MV/V, 1.5MV/V, 2MV/V, 3MV/V
Optional: 0.5MV/V, 4MV/V, 5MV/V ,6MV/V
Load cell Excitation Voltage  5~15VDC(Adjustable)
Operating Temperature  -20~60
Operating Humidity <90%RH
Protection grade  IP65
 Installation Housing fixing
Housing material ABS
Working Excitation voltage Standard: 12VDC, Optional: 24VDC
Output signal

Current:4~20mA, 0~10mA, 0~20mA

Voltage:0~5V, 0~10V, 1~5V, ±5V, ±10V

Please notify us which output you want when place order
Customized output for voltage output is supported

Accuracy

Current output type ≥ 0.05%F.S

Voltage output type ≥ 0.1%F.S

 Load cell connection At most 4 units of load cell in 350 ohm





Note: Default setting of Excitation voltage is 10VDC, customer can adjust it as needed within 5V-15V.
