Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments

$2.80/pieces 1-4 pieces
Price
Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments
Features Gallery Product Description Chat Now
Features
Specifications
Type: Load Cell
Use: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Description: SC133
Item: Load Cell
Material: Aluminum Alloy
Capacity: 1Kg, 2kg, 3kg, 5kg, 10kg, 2Okg
Size: 80*12.7*12.7 Mm
Accuracy Class: 0.05% FS
Rated Output: 1.0±0.15mV/V
Safe Over Load: 120% FS
Cable: Red, Gree, White, Black
Option: Shield Cable, Connectors, Amplifier
Application: Kitchen Scale, Electronic Scale, Test Equipment
Port: Guangzhou, Shenzhen, Hongkong
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: SC133
Payment & Shipping Terms
Packaging Details: Chinese cheap mini load cell 0.5kg 1kg 2kg 3kg 5kg load cell sensor-----carton package
Supply Ability: 10000 Piece/Pieces per Month
Product Description

Chinese cheap mini load cell 0.5kg 1kg 2kg 3kg 5kg load cell sensor, 1kg 2kg 3kg 5kg 10kg price of micro load cell 100kg120kg



Product Description



Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 0





Parameters



Application kitchen scale, pricing scale, small weighing scale, force test equipment
Capacity 1kg, 2kg 3kg 5kg 100kg 20kg 30kg 50kg
Comprehensive Error 0.05
Output sensitivity 1.0±0.1mV/V
Nonlinearity 0.05% F.S.
Repeatability 0.05% F.S.
Hysteresis 0.05% F.S.
Creep 0.05 (3min) % F.S.
Zero balance 0.05 (1min) % F.S.
Temperature effect on zero 0.2 % F.S./10℃
Temp. effect on span ≤0.15  F.S./10℃
Zero output ±0.1 MV/V
Input resistance 1000±50 ohm
Output resistance 1000±50 ohm
insulation resistance ≥2000 MΩ
Recommended excitation voltage 5-10V
Ultimate overload 150%F.S.
Load cell material Aluminum alloy
Wiring Red- input+, black- Input-. Green- Output+, White- output -



 Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 1

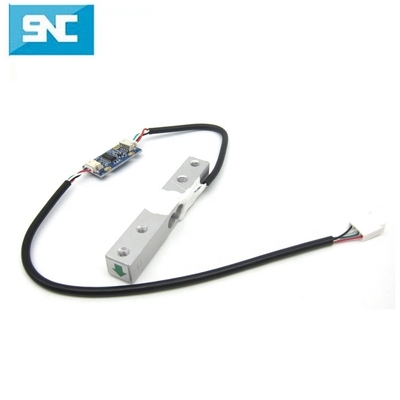

Load cell Accessorie

Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 2

Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 3

Related Products

Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 4

Packaging & Shipping

Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 5

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 6Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 7

Why Choose Us

Mini Load Cell 100kg 120kg in Aluminum Alloy Material for Accurate Pressure Sensing in Heavy-Duty Environments 8

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
