Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs

10 units
MOQ
$2/units 10-2999 units
Price
Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs
Features Gallery Product Description Chat Now
Features
Specifications
Features: Mini Load Cell 1kg-50kg
Series: Micro Beam Type Load Cell
Mounting Type: Screw Installation
Description: Small Weight Sensor Load Cell, SC133 Load Cell
Type: Load Cell
Use: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Material: Aluminum Alloy Load Cell
Capacity: 1Kg,2kg,3kg,5kg,10kg,2Okg, 50kg
Accuracy Class: 0.05%
Rated Output: 1.0±0.15mV/V
Safe Over Load: 120% RO
Ultimate Over Load: 150% RO
Cable Connection: 0.8x180mm
Working Temperature: -20--65 Degree
IP Grade: IP65
OEM/ODM: Available
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: SC133
Payment & Shipping Terms
Product Description

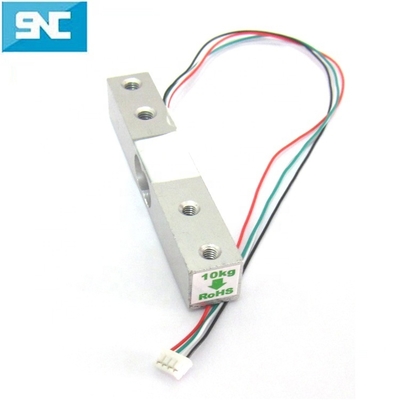

SC133 Miniature micro beam weight sensor load cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg weight sensor load cell HX711

 Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 0Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 1

Product List





Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell   Amplifier
Semi-conductor strain gauge Column load cell
  Bridge type load cell
Product Description

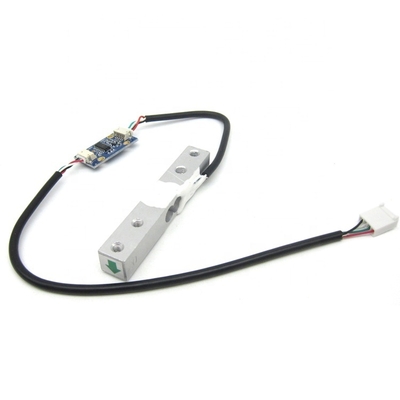

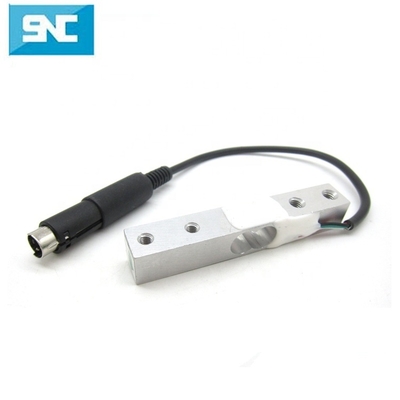

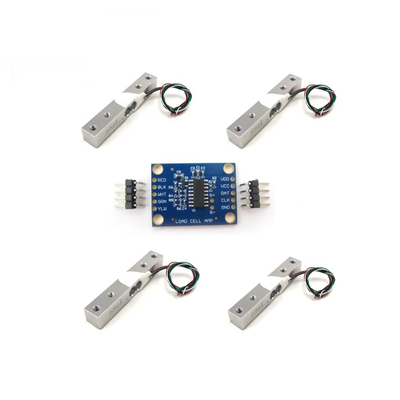

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 2

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 3



Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 4





Parameters



Application kitchen scale, pricing scale, coffee machine, brewing machine, vending machine
Capacity 1kg, 2kg 3kg 5kg 10kg 20kg 30kg 50kg
Comprehensive Error 0.05
Output sensitivity 1.0±0.1mV/V
Nonlinearity 0.05% F.S.
Repeatability 0.05% F.S.
Hysteresis 0.05% F.S.
Creep 0.05 (3min) % F.S.
Zero balance 0.05 (1min) % F.S.
Temperature effect on zero 0.2 % F.S./10℃
Temp. effect on span ≤0.15  F.S./10℃
Zero output ±0.1 MV/V
Input resistance 1000±50 ohm
Output resistance 1000±50 ohm
insulation resistance ≥2000 MΩ
Recommended excitation voltage 5-10V
Ultimate overload 150%F.S.
Load cell material Aluminum alloy
Wiring Red- input+, black- Input-. Green- Output+, White- output -



 Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 5

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 6

   6. Able to support both 10Hz and 80Hz in one PCB---new version.



Load cell Accessorie

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 7

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 8



Related Products

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 9

Packaging & Shipping

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 10

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 11Miniature Micro Beam Weight Sensor Load Cell 1kg 2kg 3kg 5kg 10kg 20kg 50kg HX711 for Accurate and Custom Weighing Needs 12

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
