1-4 Units Weight Sensor Connection Micro Load Cell Amplifier HX711 with 400ms Output Settling Time

$5/units 1-99 units
Price
1-4 Units Weight Sensor Connection Micro Load Cell Amplifier HX711 with 400ms Output Settling Time
Features Gallery Product Description Chat Now
Features
Specifications
Series: Micro Load Cell
Mounting Type: Fixed Installation
Description: Micro Load Cell, HX711 LOAD CELL
Type: Load Cell Amplifier
Use: Load Cell Signal Amplify
Theory: Wheatstone Bridge
Output: 10Hz And 80Hz
Name: Load Cell Amplifier HX711
Voltage: 2.6 To 5.5 VDC
Nominal Current: 1.5mA
Power Down Current: 0.5 UA
Common Mode Input: GND +1.2v VCC -1.3V
Output Settling Time: 400ms
Input Offset Drift: 0.2mV
Conenct With Load Cells: Can Connect 1 - 4 Units
Application: IOT , Weight Sensor Scale
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Sensorcon
Model Number: HX711
Payment & Shipping Terms
Product Description

Load sensor amplifier HX 711 connect with 1- 4 units weight sensor amplifier HX711 LOAD CELL

1-4 Units Weight Sensor Connection Micro Load Cell Amplifier HX711 with 400ms Output Settling Time 01-4 Units Weight Sensor Connection Micro Load Cell Amplifier HX711 with 400ms Output Settling Time 11-4 Units Weight Sensor Connection Micro Load Cell Amplifier HX711 with 400ms Output Settling Time 2

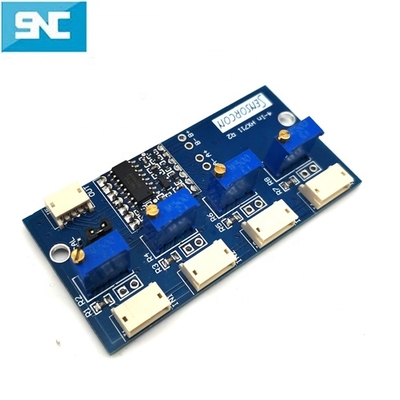

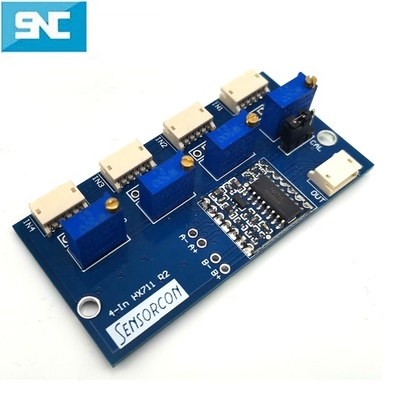

Weight Scale Load Cell Amplifier HX711

FEATURES


2 – 4 Load Cell Input
High accuracy Potentiometer for balancing load cell input

Shield connection on cabling and mounting holes.
Simple Connection (5 pin Connector)
M3 Mounting Holes


INTERFACE
Wheatstone Bridge


APPLICATIONS
Weighing Scales
Industrial Process Control
Portable Instrumentation
Smart Transmitters


AVIALABLE ACCESORIES
5 pin Sensor Cable
Mounting Hardware



DIMENSIONS
64 x 32 x 10 mm





GENERAL DESCRIPTION

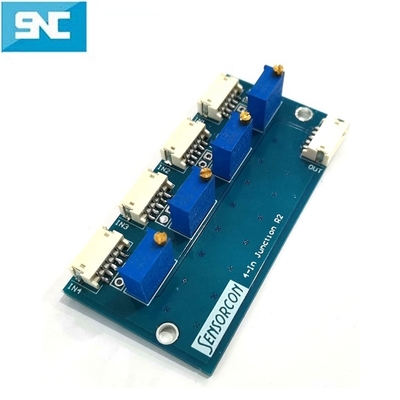

The JB4-HX711 is a compact junction box connection circuit for connecting 2-4 load cells.
Each load cell input has an adjustable resistor can be used to adjust bridge voltage so that multiple
load cell voltages can be balanced. The JB4-HX711 utilizes the same connectors as the

SNC-HX711-S for simple plug-and-play installation with minimal wiring





ELECTRICAL PARAMETERS



Parameter Value Unit
Power Supply Voltage
(VCC)		 5 – 12V V
Nominal Current > 1 mA



CONNECTION



RED Excitation +
BLACK Excitation -
WHITE Output -
GREEN Output +
YELLOW Shield
