Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee

$85-700/pieces
Price
Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee
Features Gallery Product Description Chat Now
Features
Specifications
Material: Alloy Steel
Capacity: 5KN -2000KN
Accuracy Class: 0.03 %FS
Rated Output: 2.0± 0.004 MV/V
Combined Error: ≤±0.030 %RO
Input Resistance: 725±8 Ohm
Output Resistance: 700±5 Ohm
Insulation Resistance: 5000 MΩ(50V)
Overload Rating: 150 % Rated Capacity
IP Rating: IP66
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Digital Sensor
Application: Industrial Automation
Operating Temperature: -35-+80 ℃
Output Type: 10-18V
Port: Shenzhen
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: SC29FA
Payment & Shipping Terms
Supply Ability: 500 Piece/Pieces per Month
Product Description

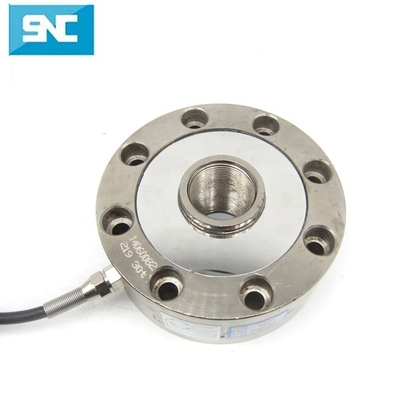

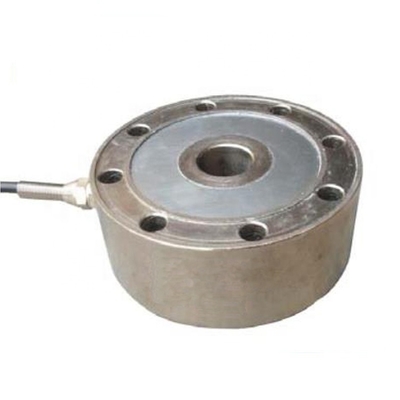

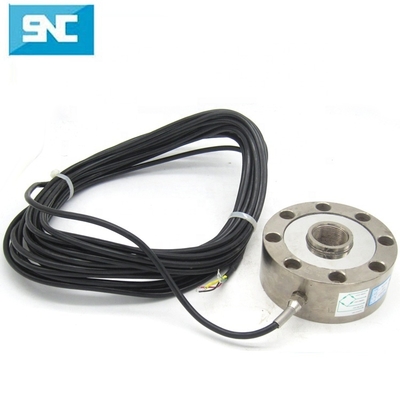

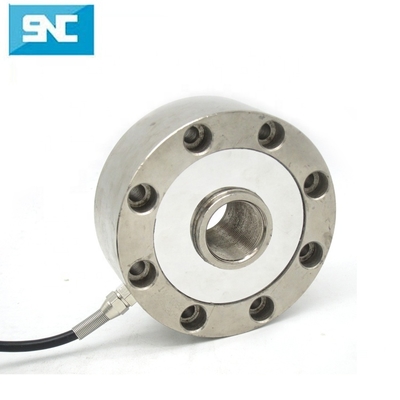

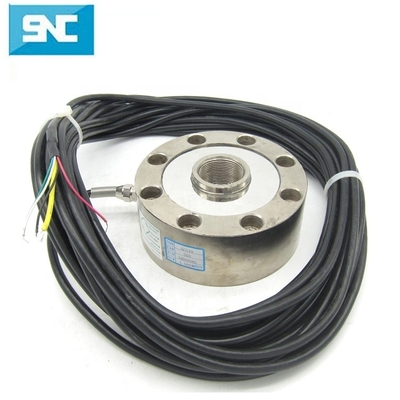

Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells Force Sensor



Features:

Model: SC29FA

Material: Alloy steel

Capacity: 5KN-2000KN

Features:  laser welded for complete hermetic sealing giving it a IP67 water proof standard.

Application: Testing machine, truck scale, weight balance. etc.



Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells Force Sensor

 Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 0

Diameters: mm



Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 1



Parameters:





ApplicationTesting equipment
ModelSC29FA
Capacity5KN, 10KN, 20KN, 100KN, 300KN, 500KN, 1000KN, 2000KN
rated output2.0± 0.004 mv/V
Accuracy class 0.03 %F·S
maximum number of verification intervals2000Nmax
Minimumload cell certification intervalsEmax/5000 Vmin
Combined error≤±0.030 % RO
Creep0.02 %RO/30min
Temp. effect on sensitivity0.0016 %RO/℃
Temp.effect on zero0.002%RO/℃
Zero balance±1.0 %RO
Input resistance725±8 ohm
Output resistance700±5 ohm
insulation resistance5000 MΩ(50V)
Recommended excitation voltage10-18 V
Compensated temperature range-10-+40℃
operating temperature range -35-+80 ℃
safe overload150 %RO
Ultimate overload200 %RO
loadcell materialAlloy steel
Connecting cable Φ5.7x6m
Method of connecting wireRed- input+, black- Input-. Green- Output+, White- output -



Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 2



Related Products

Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 3

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 4Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 5

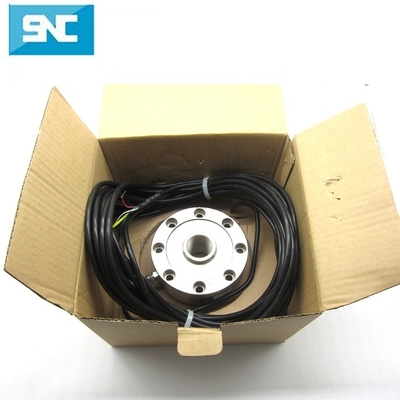

Packaging & Shipping

Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 6

Why Choose Us

Truck Scales Loadcell 30T Spoke Button Type Compression Load Cells with 2.0± 0.004 mV/V Rated Output and Durable Alloy Stee 7

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
