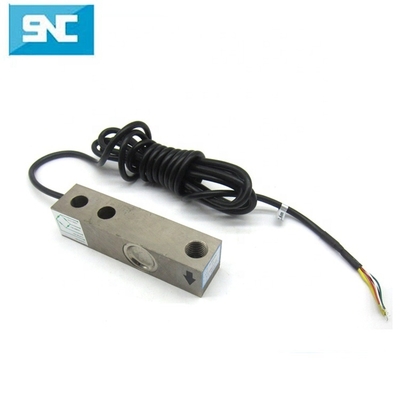

2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale

$85/sets 1-9 sets
Price
2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale
Features Gallery Product Description Chat Now
Features
Specifications
Type: Load Cell
Use: Force Measurement
Theory: Strain Gauge Sensor, Resistance Sensor
Output: MV/V, Analog SENSOR
Description: SC8320C
Model: Shear Load Cell SC8320C
Capacity: 50-3000 (kg)
Accuracy Class: 0.02%
Rated Output: 2.0±0.004mV/V
Operating Temperature Range: -35-+80 ℃
Connecting Cable: 5.7x2m
Material:: Alloy Steel, Stainless Steel
Usage: PRESSURE SENSOR
Port: Shenzhen, Hongkong, Any Port Of China
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: SC8320C
Payment & Shipping Terms
Packaging Details: SC8320C shear load cell , 16 units per box
Supply Ability: 10000 Piece/Pieces per Month Electronic Floor Scale Industry 2000Kg 2 Ton Single-Ended Shear
Product Description

Electronic Floor Scale Industry 2000Kg 2 Ton Single-Ended Shear Beam Load Cell Price

 2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 0

Product List





Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell   Amplifier
Semi-conductor strain gauge Column load cell
  Bridge type load cell
Product Description



 Features:

Model: SC8320C

Load capacity: 50kg, 100kg, 200kg, 300kg, 500kg, 1ton, 2ton 3ton
Material: Alloy steel, Welded-seal, IP67 , oil proof, waterproof and anti-corrosion.

Accuracy: 0.03% F.S
Apply to: Floor scale, Platform scale, truck scale, railroad scales, testing equipment.

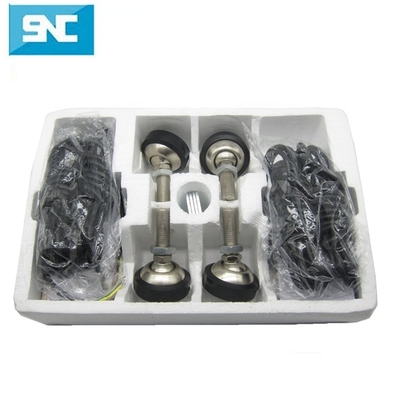

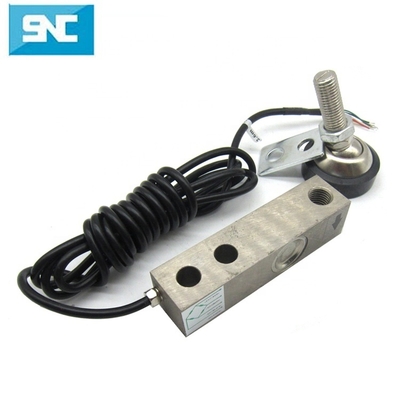

Accessory: Spacer and foot.

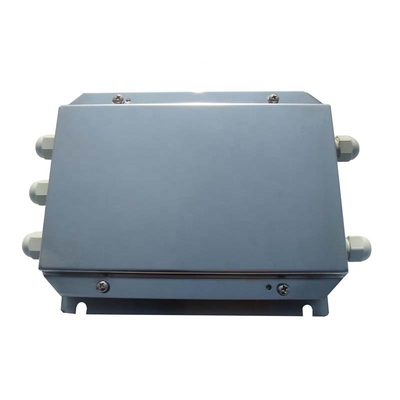

Optional accessory: Indicator, juncrtion box , cable.







 Parameters:





Model

SC8320C

Capacity

50kg, 100kg,200kg, 300kg, 500kg, 1000kg, 2000kg, 3000kg

rated output

2.0±0.004mV/V

Accuracy class

C3

maximum number of verification intervals

3000 Nmax

Minimum load cell certification intervals

Emax7500 Vmin

Combined error

±0.020 % RO

Creep

0.02%RO/30min

Temp. effect on sensitivity

0.0012 %RO/

Temp.effect on zero

 0.002%RO/

Zero balance

±1.0 %RO

Input resistance

365±10ohm

Output resistance

350±3 ohm

insulation resistance

5000 MΩ(50V)

Recommended excitation voltage

5-12V

Compensated temperature range

-10-+40

operating temperature range

-35-+80

safe overload

120 %RO

Ultimate overload

150%RO

loadcell material

alloy steel

Connecting cable

  Φ5.7x2m

Method of connecting wire

Red- input+, black- Input-. Green- Output+, White- output -

 2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 1

2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 2

2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 32000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 42000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 5

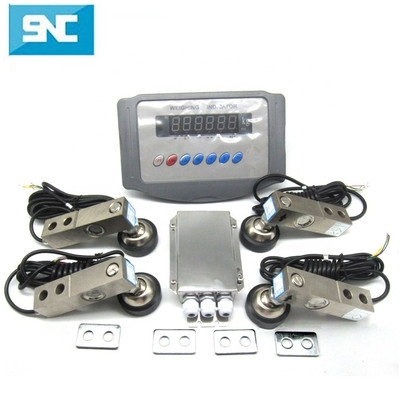

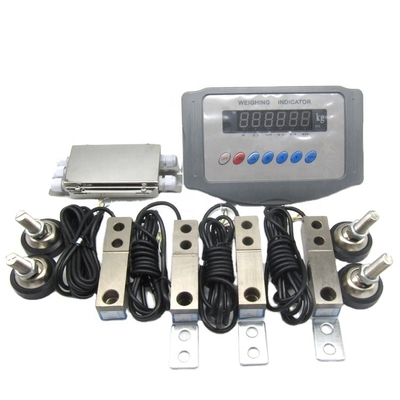

Optional accessories below for DIY floor / platform scale!



Accessories

2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 6





Related Products

2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 7

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 82000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 9

 2000Kg 2 Ton Single-Ended Shear Beam Load Cell -35- 80 C Operating Temperature Range Ideal for Electronic Floor Scale 10



FAQ

1.How to place an order ?
Please provide us more details of what you want, such as:

 1.1 What's max. weight you need to measure in kg / ton ?

 1.2 What's your application ? Platform scale ? floor scale ? Forklift scale ? Tank , silo scales ?

 1.3 How many unit do you need ?

 1.4 When do you need the goods ?



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
