SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements

100 pieces
MOQ
$2.80/pieces 100-999 pieces
Price
SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements
Features Gallery Product Description Chat Now
Features
Specifications
Features: Small Size, Small Capacity
Series: Micro Load Cell
Mounting Type: Screw Installa
Description: Micro Load Cell, SC616C
Manufacturing Date Code: 2022-12-16
Type: Load Cell
Use: Force Measurement
Theory: Strain Gauge Sensor
Output: MV/V
Material: Aluminum Alloy
Capacity: 300g 500g 750g 1kg 2kg 3kg
Item: SC616C
Output Sensitivity: 0.7±0.1mV/V
Size: 45x9.3x6 Mm
Excitation Voltage: 5-10VDC
Application: Small Scales,body Scale, Kitchen Scale
IP Grade: IP65
Safe Overload: 120%F.S.
Ultimate Over Load: 150% F.S.
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: SC616C
Payment & Shipping Terms
Product Description

Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat

Product Description

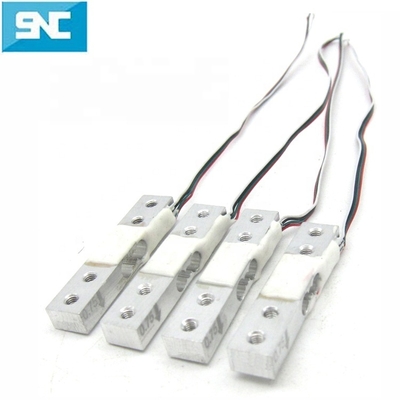

 SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 0

Parameters


Model SC616C
Capacity 300g, 500g,750g, 1kg, 2kg, 3kg
Comprehensive Error 0.05 % F.S
Output sensitivity 300g: 0.7±0.15MV/V , 500g-750g: 0.8±0.15 MV/V,  1kg-3kg: 1.0±0.15 MV/V
Non-linearity 0.05 (%F.S.)
Repeatability 0.05 (%F.S.)
Hysteresis 0.05 (%F.S.)
Creep 0.1 [(3 min)%F.S.]
Zero Output ± 0.1 m V/V
Temp. Effect on Zero 0.2(%F.S/10℃)
Temp. Effect on Span 0.05(%F.S 10℃)
Input Resistance 1000 ± 10 Ω
Output Resistance 1050 ± 100 Ω
Insulation Resistance ≥ 2000 MΩ
Excitation Voltage 3~10Vdc
Operating Temperature range -10~+40℃
Four corner error ± 0.1% F.S
Safe overload 120% F.S
Ultimate Overload 150% F.S
Cable length Φ0.6 x 110 mm
Wiring Excitation +: Red,   Excitation-: Black  Signal+: Green, Signal- : White
Application Jewelry scale, small weight scale, kitchen scale, force test

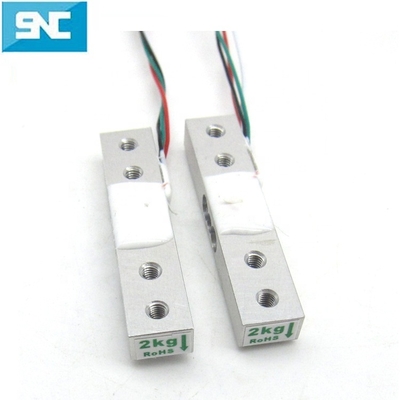

 SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 1

Load cell Accessorie

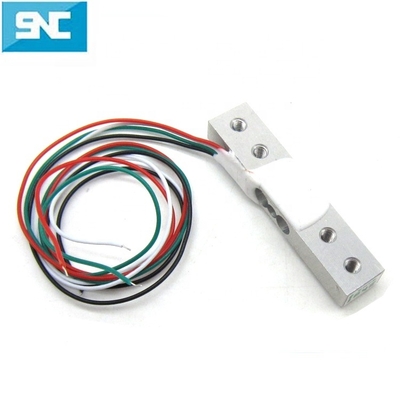

SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 2

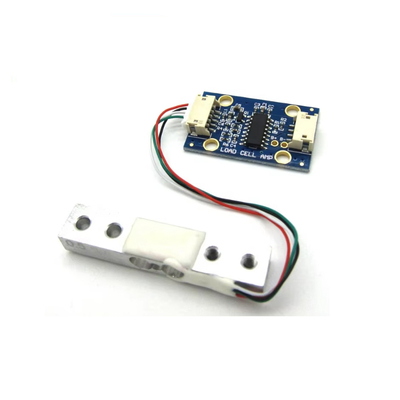

SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 3

Related Products

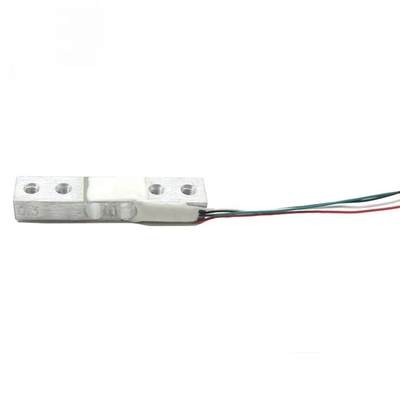

SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 4

Packaging & Shipping

SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 5

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 6SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 7

Why Choose Us

SC616C Micro Electronic Weighting Systems Load Cell C3 500G 1Kg Flat for Precise and Accurate Industrial Measurements 8

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
