IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications

10 sets
MOQ
$2.20/sets 10-49 sets
Price
IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications
Features Gallery Product Description Chat Now
Features
Specifications
Features: Flat Thin Load Cell 3kg 5kg
Series: Half Bridge Load Cell
Mounting Type: Screw Installation
Description: Load Cell Kit 3kg 5kg, Load Cell
Type: Load Cell, Half Bridge, Full Bridge
Use: Weigh
Theory: Resistance Sensor
Output: Analog SENSOR
Model: SC928NB
Material: Alloy Steel
Capacity: 3kg, 5kg
Item: Baby Scales Load Cell
Use Temperature: -10-+60℃
Output Resistance: 1000±10Ω
Excitation Voltage:: 5~10VDC
IP Grade: IP65
Application: Bathroom Scale, Kitchen Scale,body Scale, Baby Scale, Post Scale
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: SC928NB
Payment & Shipping Terms
Product Description

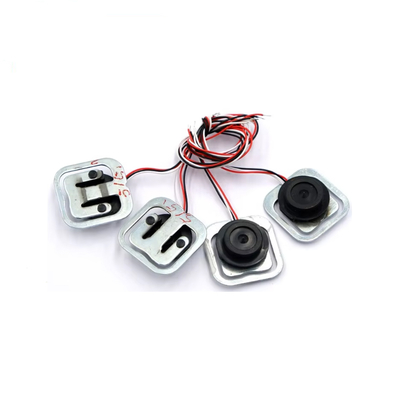

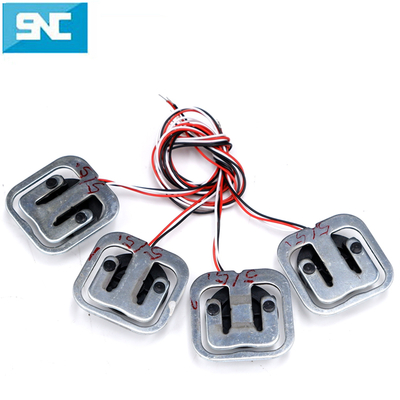

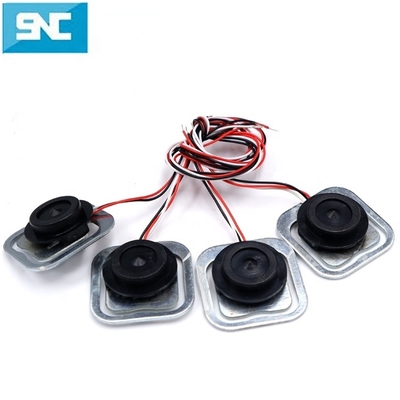

Cheap Electronic Alloy Steel Micro Kitchen Scale Load Cell 3Kg 5Kg

Product Description

 IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 0IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 1IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 2

Parameters


Capacity 3kg,5kg
Rated output 0.75 /1.2± 0.15mV/V
Creep ±0.1 %F·S/3min
Non-linearity  ±0.05%F·S
hysteresis error ±0.05 %F·S
Repeatability  ±0.05%F·S
Zero output  ±0.5 mV/V
Temp. effect on sensitivity 0.2%F·S/10ºC
Temp. effect on zero 0.1%F·S/10ºC
Input resistance  1000 ± 10 Ω
Output resistance  1000 ± 10 Ω
Insulation resistance ≥ 2000 MΩ(100VDC)
Operating temp. range  -10~+40ºC
Excitation voltage 3~10 VDC
Ultimate overload 150%F·S
Load cell material Steel
Connecting cable Φ0.8x220mm
Unit weight 18g/set
Package  200 sets per carton
Wiring:  W: White R: Red B: Black  E+: Excitation + S+: Signal +    E-: Excitation - S-: Signal -



 IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 3

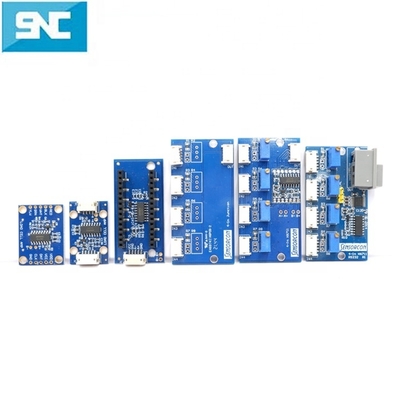

Load cell Accessorie

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 4

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 5

Related Products

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 6

Packaging & Shipping

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 7

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 8IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 9

Why Choose Us

IP65 Rated 5kg Capacity Electronic Alloy Steel Micro Kitchen Scale Load Cell Half Bridge for Industrial Applications 10

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
