RS232/RS485 Communication Torque Sensor Speed Meter Display with Customized Software Reengineering and Performance

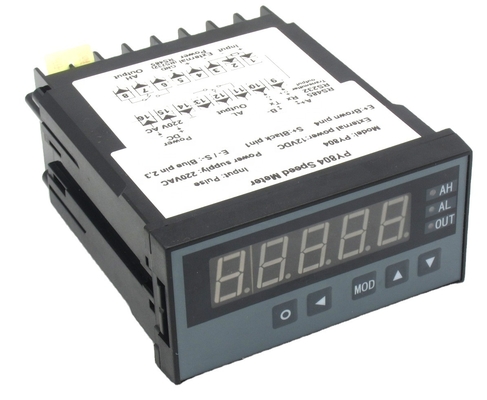

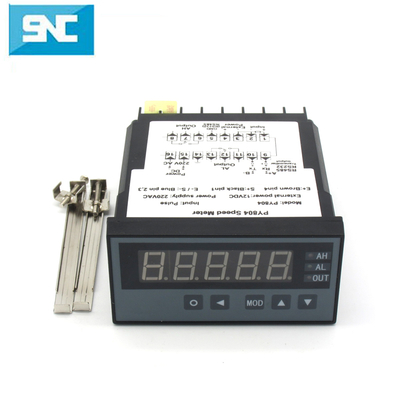

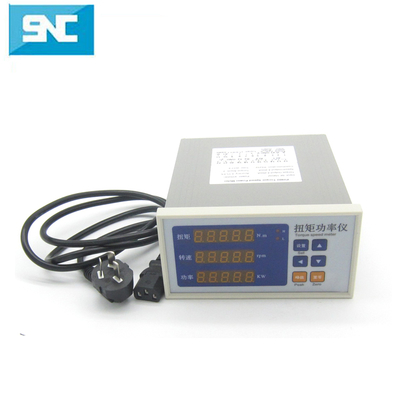

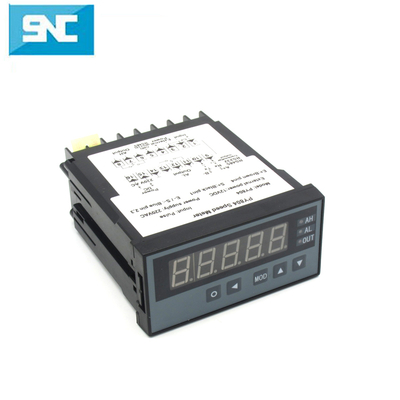

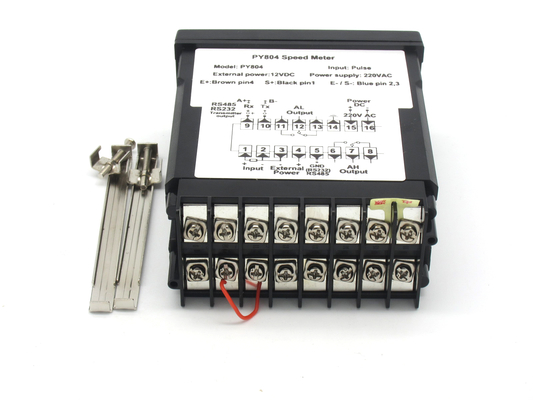

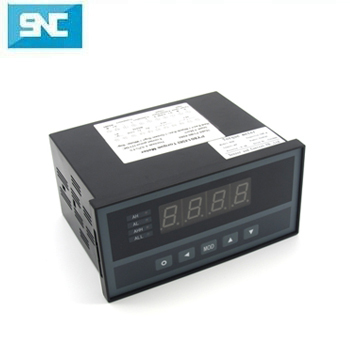

Torque sensor speed meter display

Standard Speed meter dislay

Speed meter display with RS232 / RS485 for computer connection.

Buying  Guide

XSM () () () () () () () () ()

♦1:Dimensions in mm
    A:160(W)× 80(H)× 125(L)
    B:96(W)× 96(H)× 112(L)
    C:96(W)× 48(H)× 110(L)

♦ 2:Front panel shapes: H:Horizontal Type    F:Square Type

♦ 3:Display types:
    3.1:Measured value(Green)
    3.2:Measured value(Green)+ Set value(Red), restricted to Type A
    3.3:Measured value(Green)+ Light bar display of measured vale(Green), restricted to Type A
    Y:5-digit liquid-crystal display, restricted to Type A and Type B
 ◊ The color of LED display can be ordered.

♦ 4:Input Signal
    G:Standard type, applicable to NPN, PNP voltage signal, 2-wire 4~20mA impulse signal and TTL impulse signal
    M:mV type, applicable to magnetic electrics type proximity switch

♦ 5:The Number of Alarm Outputs
    T0:No alarm output
    T1~T8:1~8 alarm outputs
    The maximum number of alarm outputs on C type meter is 3.
    The maximum number of alarm outputs on B type meter is 4.
    If the number of alarm outputs on A type meter exceeds 4, the depth of meter will be 250mm.

♦ 6:Analog Output
    A0: no analog output
    A1: 4mA~20mA, 0mA~10mA,or 0mA~20mA
    A2: 0V~5V, 1V~5V
    A3: 0V~10V
    A4: other type of output

♦ 7:Power Supply Output
    B0: no output power supply
    B1: 24V DC
    B2: 12V DC
    B3: other type

♦ 8:Communication interface
    S0: no communication interface
    S1: RS 232
    S2: RS 485
    S3: RS 422
    S4: BCD (restricted to type A and type B meter)

♦ 9:Meter power supply
    V0: 220V DC
    V1: 24V DC
    V2: 12V DC
    V3: other type

♦ 10:Print unit interface(restricted to type A and type B meter)
      P: print unit interface present
      Can be omitted if no print unit present.

♦ 11:Recording unit restricted to type A and type B meter
      R: print unit interface present
      Can be omitted if no recording unit present.

♦ 12:Frequency pre-divider unit

      F*:* stands for dividing ratio
      Can be omitted if no frequency pre-divider unit present.

♦ 13:N stands for non-standard function, which means that some functions have been customized according to the order.
