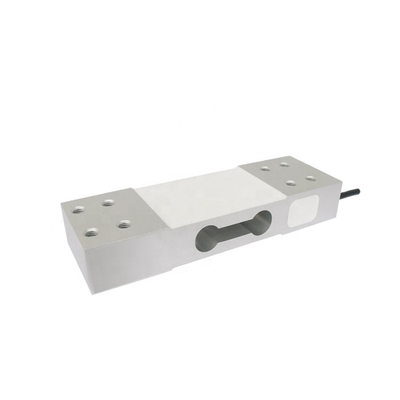

Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm

$10-25/pieces
Price
Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm
Features Gallery Product Description Chat Now
Features
Specifications
Series: Load Cell
Mounting Type: Fixed Installation
Description: Load Cell, SC628
Type: Load Cell
Use: Force Measurement
Theory: Strain Gauge Sensor
Output: 2mV/V
Model Number:: SC628
Capacity: 50kg- 750KG
Material:: Alloy Aluminum
Size:: 186x60x30 (mm)
Operation Temp. Range (℃):: -20~+60
Rated Output: 2.0±0.15mV/V
Safe Overload: 150 %RO
Recommended Table Size: 600x600mm
Connecting Cable: 5.7x3. 5 M
Unit Weight: 2kg
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: SNC
Model Number: SC628
Payment & Shipping Terms
Product Description

SC628 Single Point Aluminium Alloy Load Cell  50 To 500 Kg 750 Kg For Platform Scale 600X600 mm



Model: SC628

Rated load:50, 60, 75, 100, 150, 200, 250, 300, 500, 600, 750KG

Precision: C3

Safe overload:150%

Ultimate overload: 200%

Material: ,Alloy aluminum

Apply to: electronic scale, Platform scale, pricing scale, fore test equipment





SC628 Single Point Aluminium Alloy Load Cell  50 To 500 Kg 750 Kg For Platform Scale 600X600 mm



Product Description
Comprehensive error:  0.02%F.S
Rated output:  2±0.1mV/V
Non-linearity:  0.02%F.S
Hysteresis:  0.02%F.S
Repeatability:  0.02%F.S
Creep:  0.02%F.S/10min
Zero balance:  ±1%F.S
Input resistance:  405±10Ω
Output resistance:  350±3Ω
Insulation resistance: ≥5000MΩ(100VDC)
Excitation voltage:  9VDC~12VDC
Compensated temp. range:  -10℃~+40℃
Use temp. range:  -20℃~+60℃
Temp. effect on zero:  0.03%F.S/10℃
Temp. effect on span:  0.02%F.S/10℃
Safe overload:  120%
Ultimate overload:  150%
Defense class:  IP65




Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 0



Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 1

Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 2

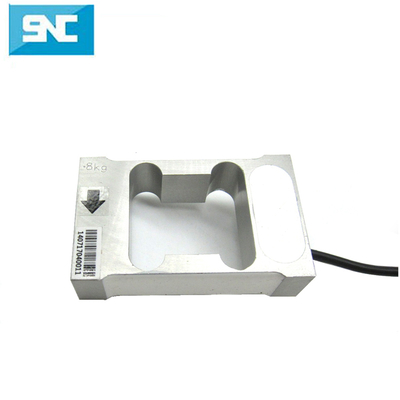

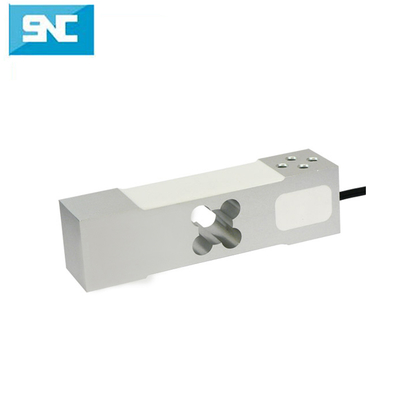

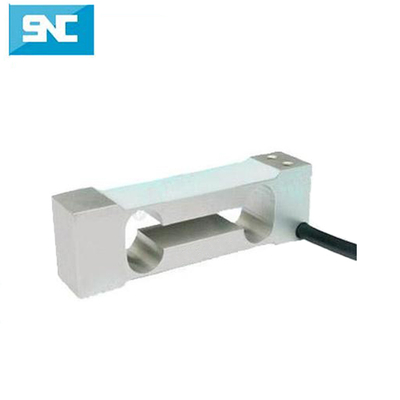

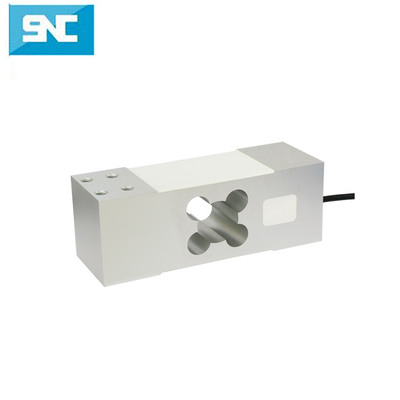

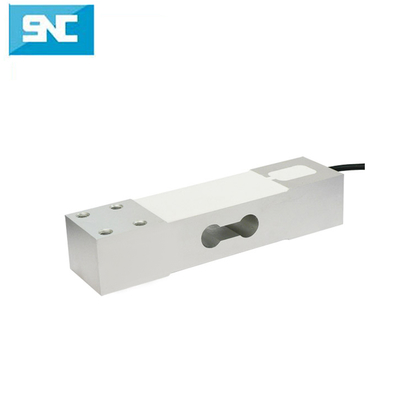

Related Products

Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 3


Production Process

Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 4

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 5Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 6

Packaging & Shipping

Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 7



Why Choose Us

Material SC628 Strain Gauge Sensor Single Point Alloy Aluminum Load Cell 50-500 Kg 750 Kg for Platform Scale 600X600 mm 8

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
